Route Maps and their use in BGP

Route Map:

A Route Map serves as a configuration tool utilized in multiple routing protocols, including Border Gateway Protocol (BGP) and Routing Information Protocol (RIP). Its purpose is to establish routing policies and manipulate the routing information that is shared between routers. Route maps provide network administrators with the ability to manage the learning, advertising, filtering, and modification of routes according to specific criteria. They serve as a crucial element in the implementation of sophisticated routing policies within intricate network infrastructures.

Route maps in routing protocols possess several key characteristics and serve various purposes. These characteristics and uses are as follows:

Matching Criteria: The matching criteria for route maps involve the specification of conditions, typically through the use of match statements. These conditions are used to identify routes or route updates that satisfy particular criteria. The criteria for selection may encompass IP address ranges, Autonomous System (AS) paths, route attributes, or other relevant routing information.

Policy-Based Routing: Policy-based routing (PBR) involves the utilization of route maps to redirect specific routes according to predefined policies, as opposed to relying solely on traditional routing metrics. For example, you can direct traffic that meets specific criteria through an alternative path or next-hop.

Route Filtering: Route maps can be used to implement route filtering on a router, thereby controlling the advertisement or acceptance of specific routes. This feature is highly advantageous for the management of route propagation and the prevention of undesired route distribution.

Route Modification: Route maps facilitate the transition of route attributes, such as the IP address of the next hop, metric values, or prefix length. This functionality can prove beneficial in the context of route aggregation, route summarization, or the manipulation of routing decisions.

Routing Decisions: Routing decisions are influenced by route maps, which define the actions to be taken on routes that meet specific criteria. Actions in a technical context encompass various operations such as ensuring permit or deny decisions, configuring attributes, or redirecting routes.

Complex Routing Policies: Route maps are often used to implement intricate routing policies, which involve activities like redistributing routes between various routing protocols or manipulating BGP attributes.

Prefix Lists and Access Control Lists (ACLs): Route maps have the capability to make use of prefix lists or access control lists (ACLs) in order to establish the criteria for matching routes during the process of route filtering or route redistribution.

Sequence Numbers: Route maps are commonly structured as a series of clauses, which are then executed in the specified order. A sequence number can be assigned to each clause in order to regulate the evaluation order.

Dynamic Routing Protocols: Route maps have been employed in a variety of routing protocols, such as BGP, EIGRP, OSPF, and RIP. Every protocol possesses its own unique syntax and capabilities when it applies to implementing route maps.

In conclusion, Route Maps are deemed to be a robust tool for customizing and optimizing routing behavior in intricate network environments. They enable network administrators to enforce routing policies that are in line with specific business and operational needs.

__________________________________________________________________________________________

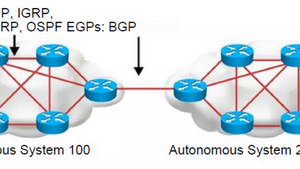

The use of Route Map in Border Gateway Protocol (BGP)

In the context of BGP, route maps play a crucial role in managing route advertisements, altering BGP path attributes, and impacting routing decisions among Autonomous Systems (ASes). On the other hand Routing protocols such as OSPF and EIGRP are often used to facilitate route redistribution and filtering.

The general steps to configure BGP using Route Map:

1. Enter Global Configuration Mode:

• Access the command-line interface (CLI) of your BGP router and enter global configuration mode.

2. Enable BGP:

• Enable BGP on the router and specify the autonomous system number (ASN).

3. Define Route Maps:

• Create one or more route maps to define the routing policies. A route map typically includes a sequence of match and set statements.

4. Configure Match Statements:

• Use match statements to specify the conditions under which the route map should be applied. For example, you can match based on IP prefixes, AS paths, or other attributes.

5. Configure Set Statements:

• Use set statements to define actions that should be taken on routes that match the specified conditions. This can include setting attributes like the next-hop IP address or modifying route attributes.

6. Apply Route Maps:

• Apply the route maps to BGP neighbor sessions, either for inbound or outbound routing policies. Inbound policies affect routes received from neighbors, while outbound policies affect routes advertised to neighbors.

7. Repeat for Multiple Route Maps:

• If you have multiple routing policies, repeat steps 3 to 6 to create and apply additional route maps as needed.

8. Save Configuration:

Save the BGP configuration to ensure that it persists after a reboot.

9. Verify Configuration:

• Use show commands (e.g.,

show ip bgp

show route-map

show running-config

to verify that your BGP configuration, including route maps, is correctly set up.

10. Monitor and Troubleshoot:

Continuously monitor the BGP routing table and neighbor relationships to ensure that your routing policies are functioning as expected. Use debugging and logging as needed to troubleshoot issues.

Remember that the exact configuration details may vary depending on your specific network requirements, BGP setup, and router platform. Be cautious when applying BGP route maps, as misconfigurations can impact network routing and stability. It's recommended to thoroughly test and document your configurations.
